Mini Zoom 3 Blade (Schweizer 300C) by GAUI

29 Dec 11 - Page added.

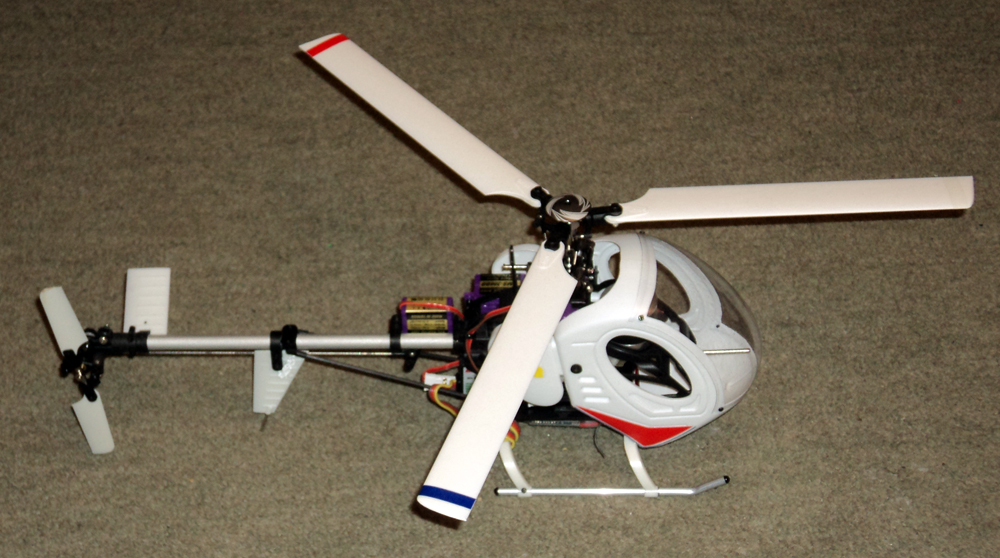

GAUI Mini Zoom 3 Blade helicopter - 3/4 view GAUI Mini Zoom 3 Blade helicopter - Side view

N of launches / Time 4

0 hours 29 mins

Rotor Diameters Main 14.2 in. 360 mm
Tail 3.95 in. 101 mm
Weight 8.6 oz 245 g
Motor GAUI 4800 RPM/V brushless motor (included)
Main gearbox Motor to main rotor is 10:1
Tail gearbox Belt driven 1:4 to the main rotor gear
Speed Controller GAUI 18A - 2 to 4 LiPo - BEC
Battery Pack 2s 20C 800mAh LiPo
Receiver Spektrum AR6100e - 6ch - 2.4GHz
Servos CCPM 3 x Bluebird BMS-306BB = 6.6g / 1.5kg cm / 0.10s
  Tail Bluebird BMS-306BB = 6.6g / 1.5kg cm / 0.10s
Gyro BuzzFlyer Dual Rate Head Lock Gyro
Flight performance Responsive but surprisingly docile for a flybarless helicopter

29 Dec 11 - I saw this scale(ish) Schweizer 300C .mini helicopter and loved the look and 3 blade flybarless design.  I was surprised that no electronic flybarless controller is used, just a standard gyro, but it flies very stably anyway.
